Genuine GM VZ LS1 Drive By Wire Throttle Body 78mm - Used - Commodore Monaro HSV 5.7L

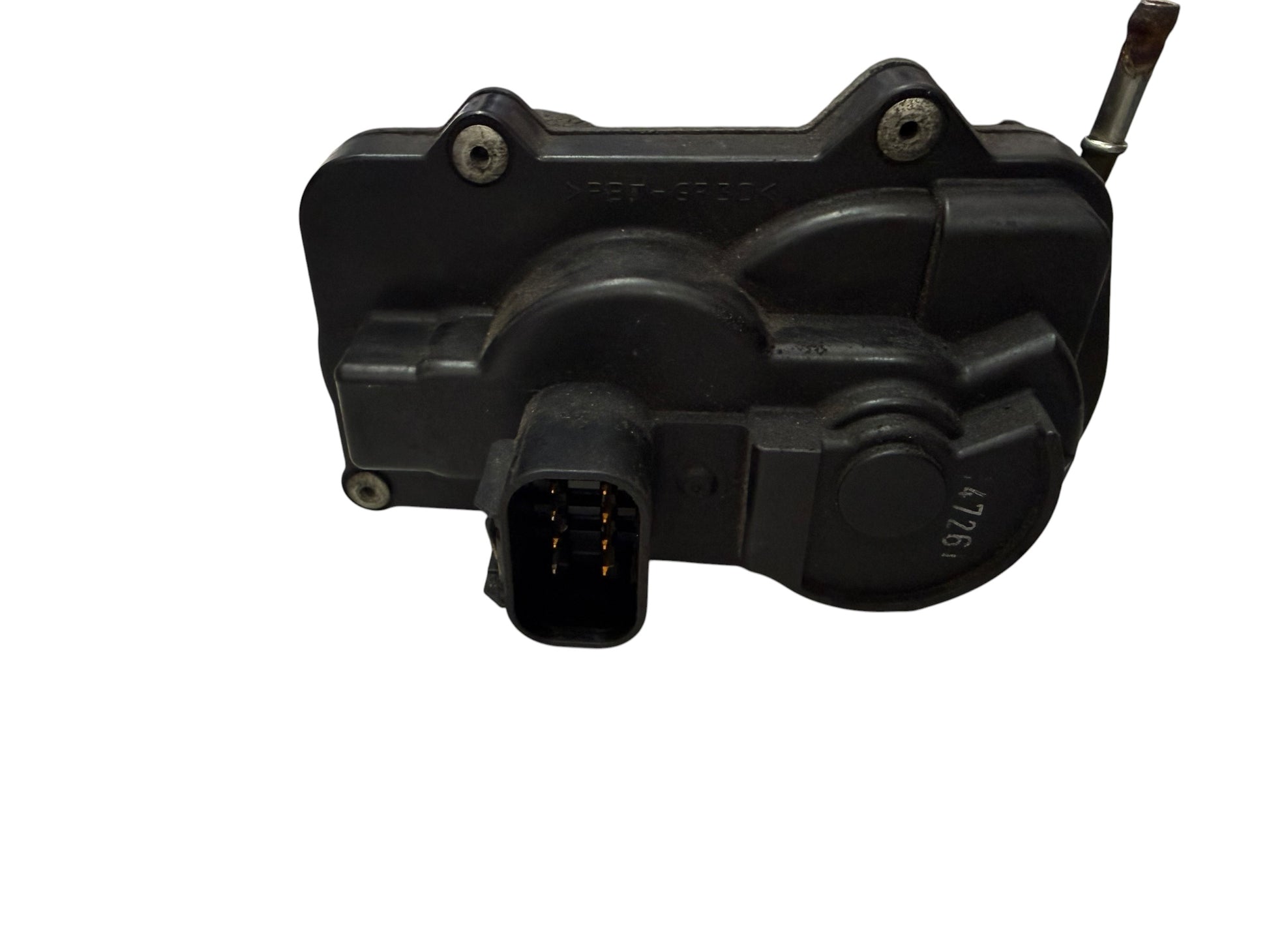

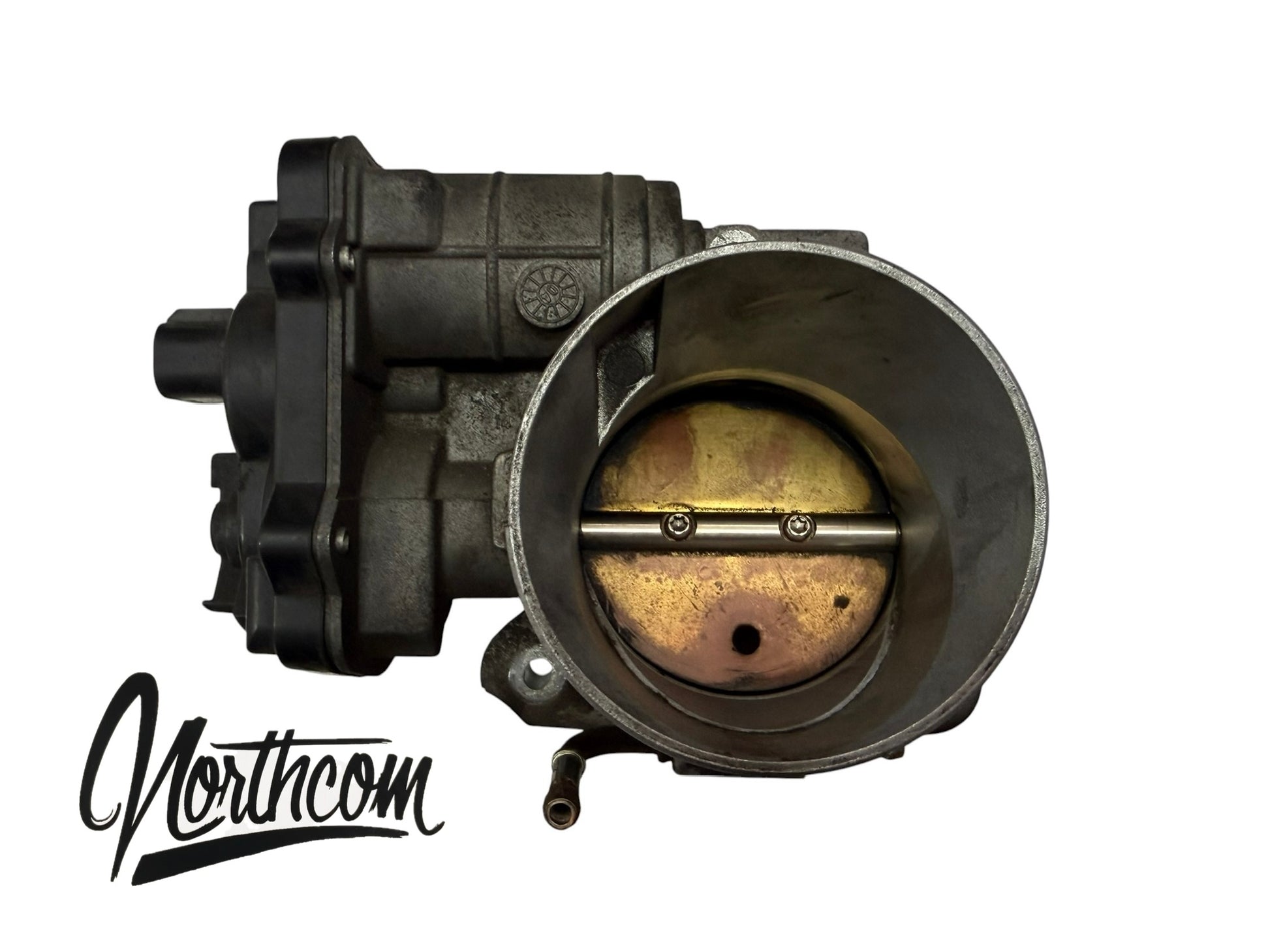

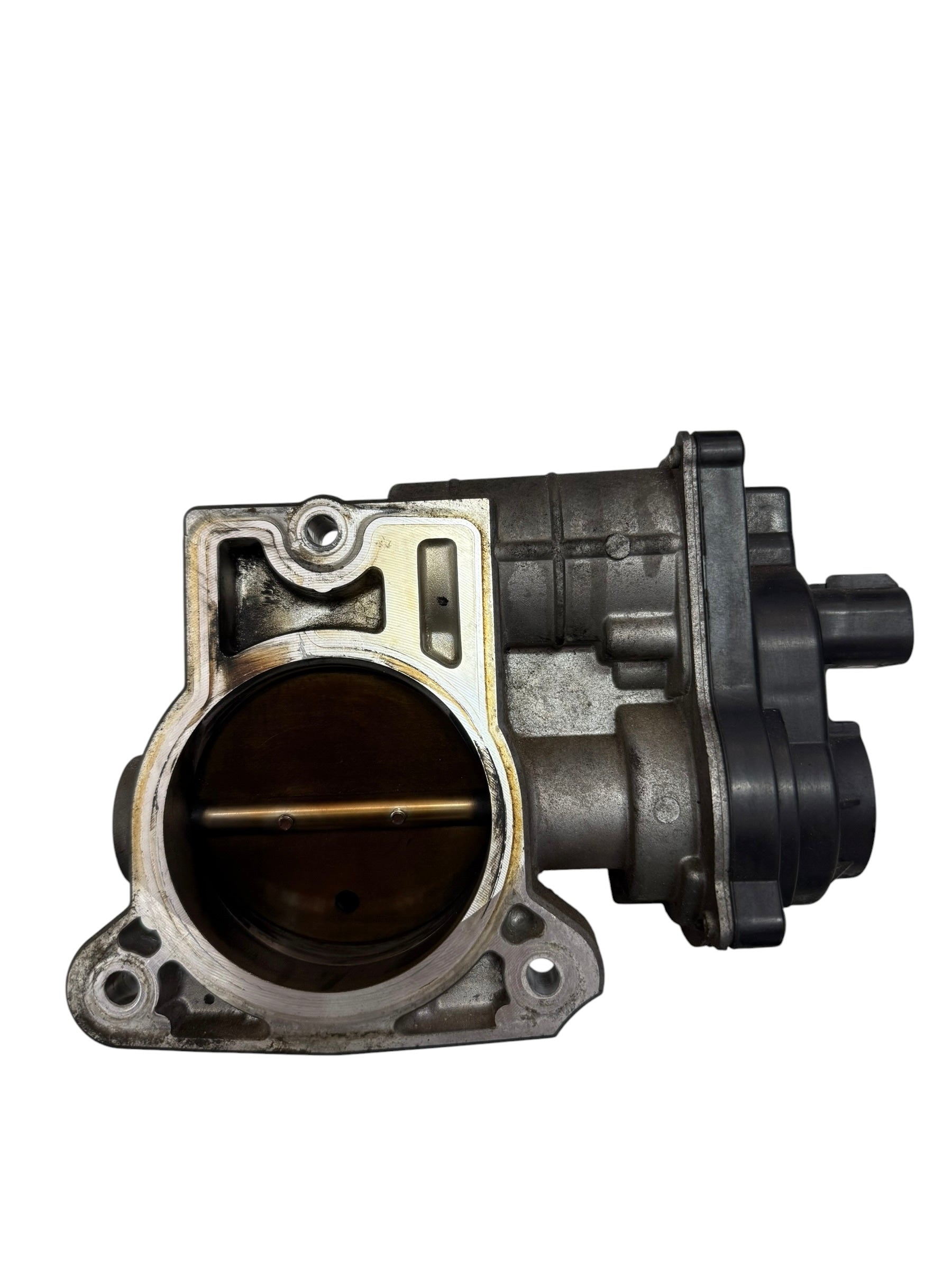

Genuine GM drive-by-wire (fly-by-wire) throttle body, removed from a good running VZ Commodore 5.7L LS1. 78mm bore, three-bolt flange, single six-pin connector with integrated throttle position sensor and gear-drive motor.

Fitment

• Holden VZ Commodore, Ute, Wagon, Crewman — 5.7L LS1
• Holden WL Statesman / Caprice — 5.7L LS1
• Holden VZ Monaro CV8 — 5.7L LS1
• HSV VZ range — 5.7L LS1
• Bolts to LS1 and LS6 cathedral port intake manifolds

Important — match the system

Drive-by-wire throttle bodies must be paired with the matching PCM, TAC module and throttle pedal. This unit runs with the VZ blue/green PCM setup. It is not a drop-in for a cable-throttle VT–VY car without the full drive-by-wire conversion. Check what you have before ordering.

What's included

Throttle body only as pictured. Gasket not included — we recommend fitting a new one.

Condition

Used, removed from a good running vehicle. Butterfly and shaft in good order, no cracks in the housing, connector pins clean and intact. Normal carbon and surface marks for age — a clean before fitting is worth doing.
