Genuine GM LS1 Fuel Rail & 8 Injectors 12590212 12561462 - Used - VT VX VY VZ Commodore 5.7L

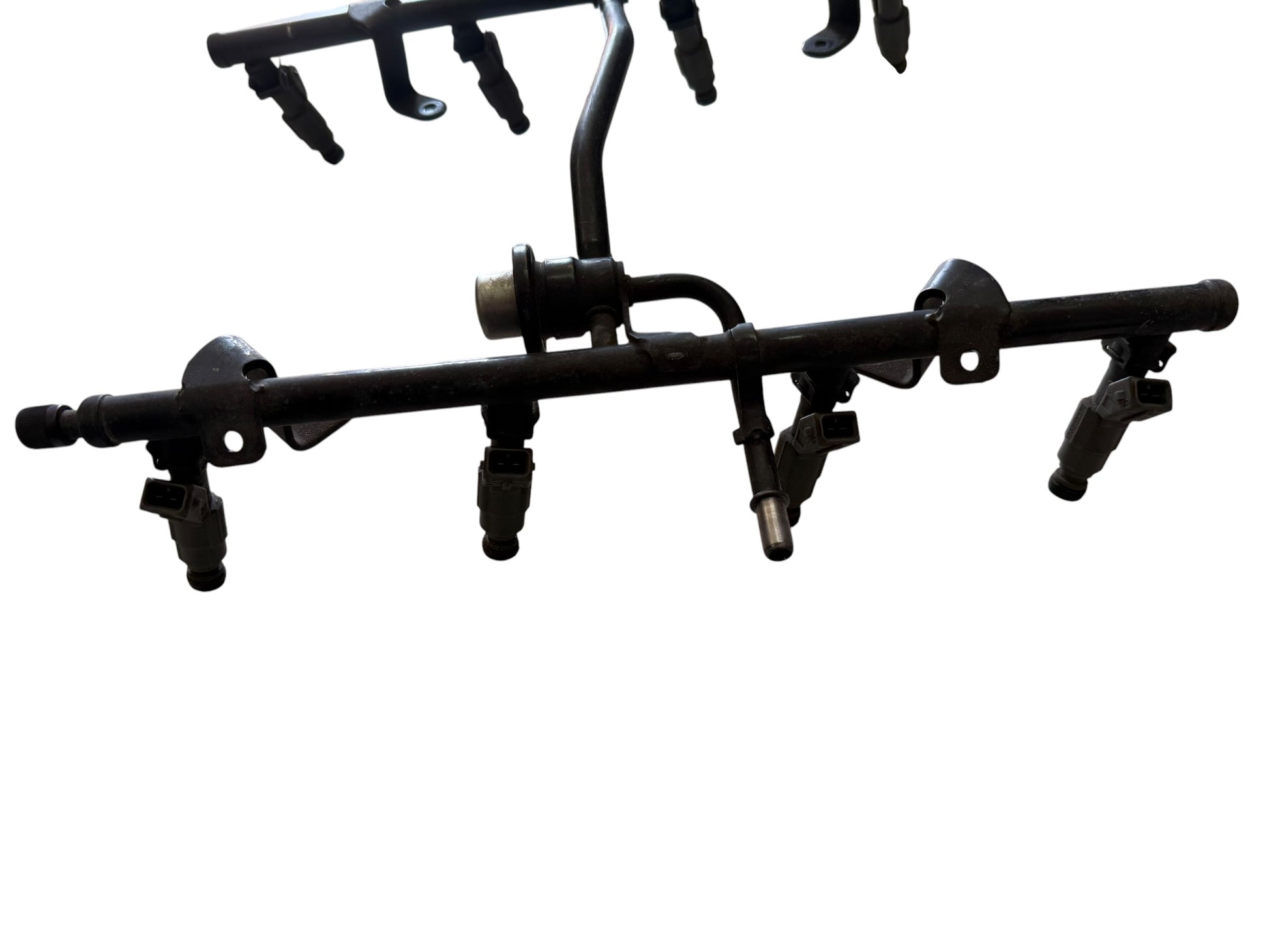

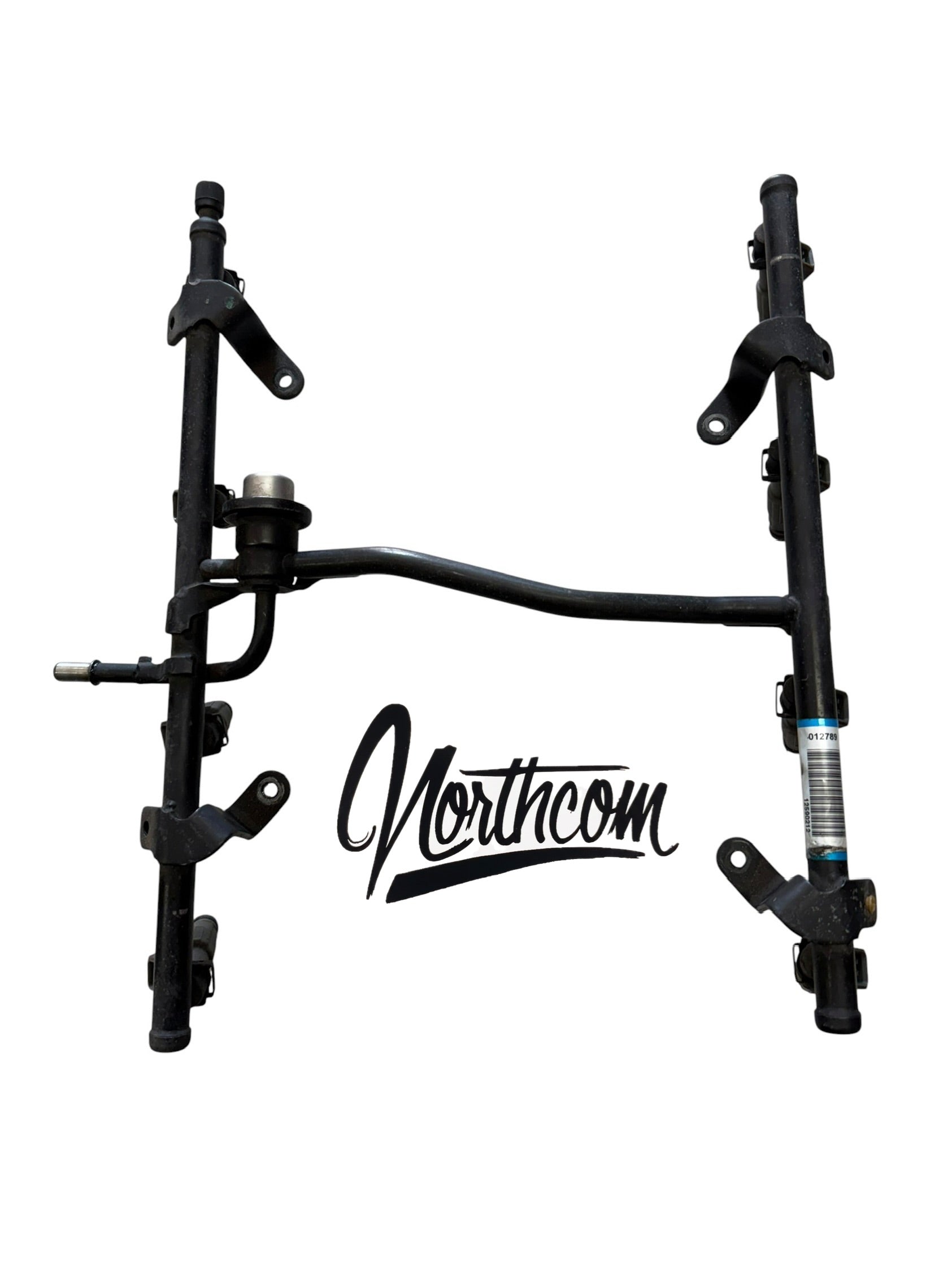

Genuine GM fuel rail assembly with all 8 injectors, removed from a running VZ Commodore 5.7L LS1. Rail part number 12590212, injectors 12561462. Complete assembly including crossover, regulator and mounting brackets.

The injectors are the good ones

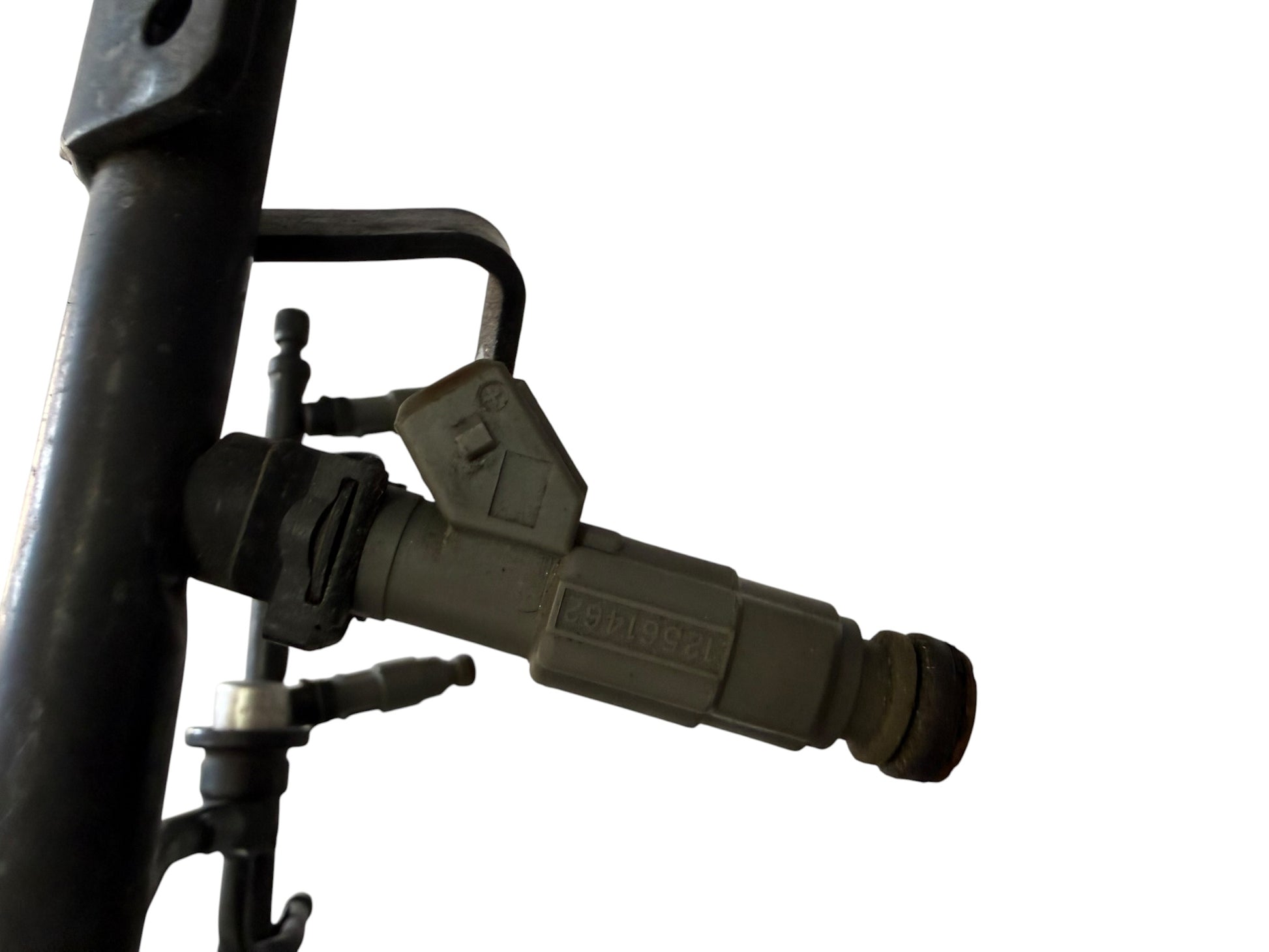

12561462 is the 2001–2004 LS1/LS6 injector — around 30 lb/hr at 58 psi (Bosch 0280155931, EV1 connector). That's a genuine step up from the 27.3 lb/hr 12555894 injectors fitted to earlier VT and VX cars, and enough headroom for a cammed, headers-and-tune LS1 without going aftermarket. Popular as a straight upgrade for VT/VX owners and as a rebuild set for anyone with tired, leaking originals.

Fitment

• Holden VT, VX, VU, VY, VZ Commodore, Ute, Wagon — 5.7L LS1
• Holden WH, WK, WL Statesman / Caprice — 5.7L LS1
• Holden Monaro V2 / VZ CV8 — 5.7L LS1
• HSV VT–VZ range — 5.7L LS1
• Suits LS1 and LS6 cathedral port intake manifolds
• Common choice for LS conversions and engine swaps

Part numbers

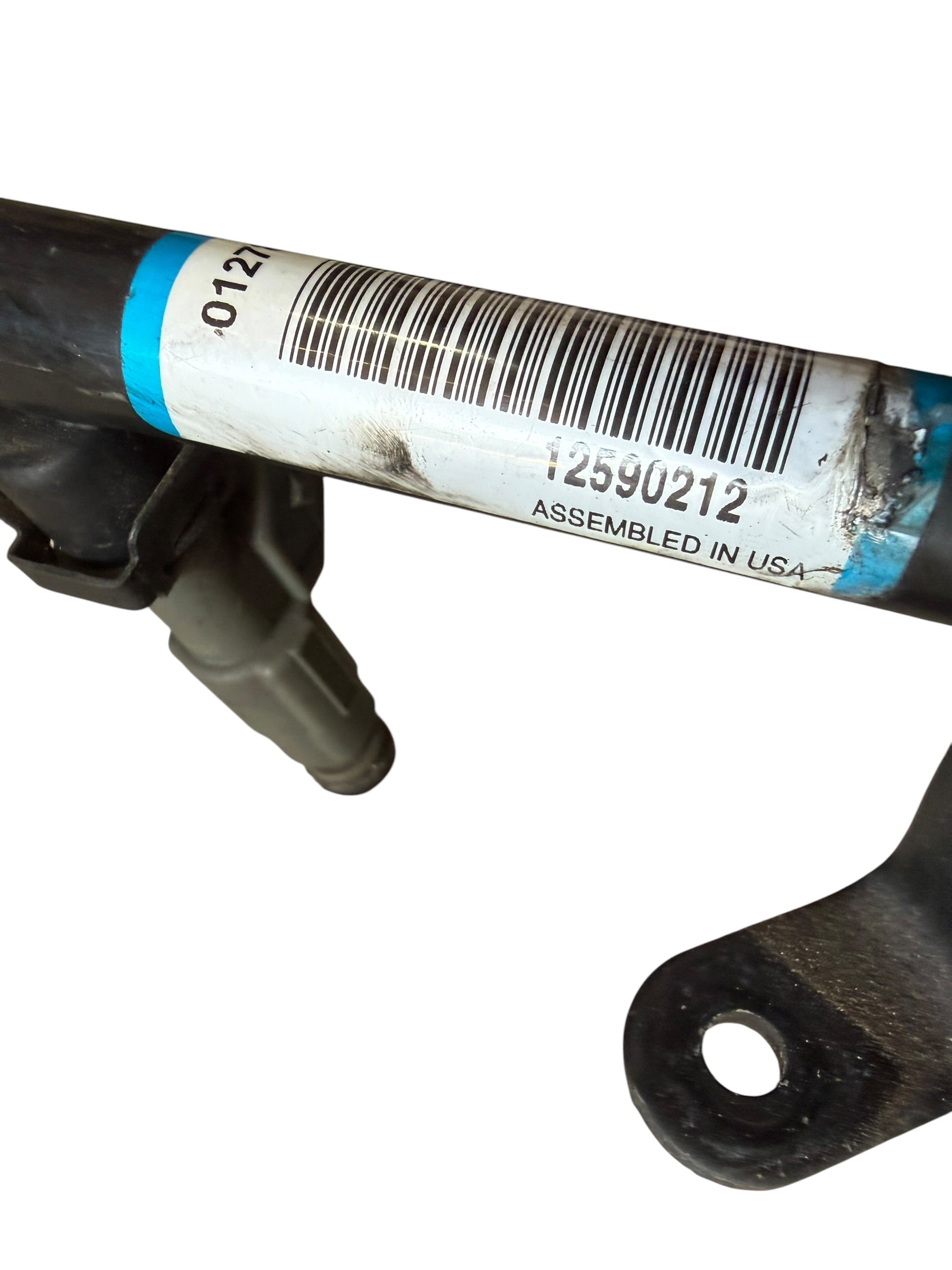

Fuel rail GM 12590212. Injectors GM 12561462 (Bosch 0280155931), EV1 connector.

What's included

Complete rail assembly with all 8 injectors, regulator and brackets as pictured. We recommend fitting new injector O-rings on installation.

Condition

Used, removed from a running VZ LS1. No cracks, no broken plugs, all injectors present and intact. Normal surface marks for age. Injectors have not been flow tested or cleaned — a professional clean and flow test before fitting is always worth the money on a used set.
